Several panel plots that can be used with pairs()
.
Usage
panel_boxplot(x, col = par("col"), box.col = "cornsilk", ...)
panel.boxplot(x, col = par("col"), box.col = "cornsilk", ...)
panel_density(
x,
adjust = 1,
rug = TRUE,
col = par("col"),
lwd = par("lwd"),
line.col = col,
line.lwd = lwd,
...
)
panel.density(
x,
adjust = 1,
rug = TRUE,
col = par("col"),
lwd = par("lwd"),
line.col = col,
line.lwd = lwd,
...
)
panel_hist(
x,
breaks = "Sturges",
hist.col = "cornsilk",
hist.border = NULL,
hist.density = NULL,
hist.angle = 45,
...
)
panel.hist(
x,
breaks = "Sturges",
hist.col = "cornsilk",
hist.border = NULL,
hist.density = NULL,
hist.angle = 45,
...
)
panel_qqnorm(
x,
pch = par("pch"),
col = par("col"),
bg = par("bg"),
cex = par("cex"),
lwd = par("lwd"),
qq.pch = pch,
qq.col = col,
qq.bg = bg,
qq.cex = cex,
qqline.col = qq.col,
qqline.lwd = lwd,
...
)
panel.qqnorm(
x,
pch = par("pch"),
col = par("col"),
bg = par("bg"),
cex = par("cex"),
lwd = par("lwd"),
qq.pch = pch,
qq.col = col,
qq.bg = bg,
qq.cex = cex,
qqline.col = qq.col,
qqline.lwd = lwd,
...
)
Arguments
- x
A numeric vector.
- col
The color of the points.
- box.col
The filling color of the boxplots.
- ...
Further arguments to plot functions, or functions that construct items, like
density()
, depending on the context.- adjust
The bandwidth adjustment factor, see
density()
.- rug
Do we add a rug representation (1-d plot) of the points too?
- lwd
The line width.
- line.col
The color of the line.
- line.lwd
The width of the line.
- breaks
The number of breaks, the name of a break algorithm, a vector of breakpoints, or any other acceptable value for
breaks
argument ofhist()
.- hist.col
The filling color for the histograms.
- hist.border
The border color for the histograms.
- hist.density
The density for filling lines in the histograms.
- hist.angle
The angle for filling lines in the histograms.
- pch
The symbol used for the points.
- bg
The background color for symbol used for the points.
- cex
The expansion factor used for the points.
- qq.pch
The symbol used to plot points in the QQ-plots.
- qq.col
The color of the symbol used to plot points in the QQ-plots.
- qq.bg
The background color of the symbol used to plot points in the QQ-plots.
- qq.cex
The expansion factor for points in the QQ-plots.
- qqline.col
The color for the QQ-plot lines.
- qqline.lwd
The width for the QQ-plot lines.
Value
These functions return nothing and are used for their side effect of plotting in panels of composite plots.
Details
Panel functions panel_boxplot()
, panel_density()
, panel_hist()
and panel_qqnorm()
should be used only to plot univariate data on the
diagonals of pairs()
plots (or scatterplot matrix).
Author
Philippe Grosjean phgrosjean@sciviews.org, but code inspired from
spm()
in package car.
Examples
# Example of scatterplot matrices with custom plots on the diagonal
# Boxplots
pairs(trees, panel = panel_smooth, diag.panel = panel_boxplot)

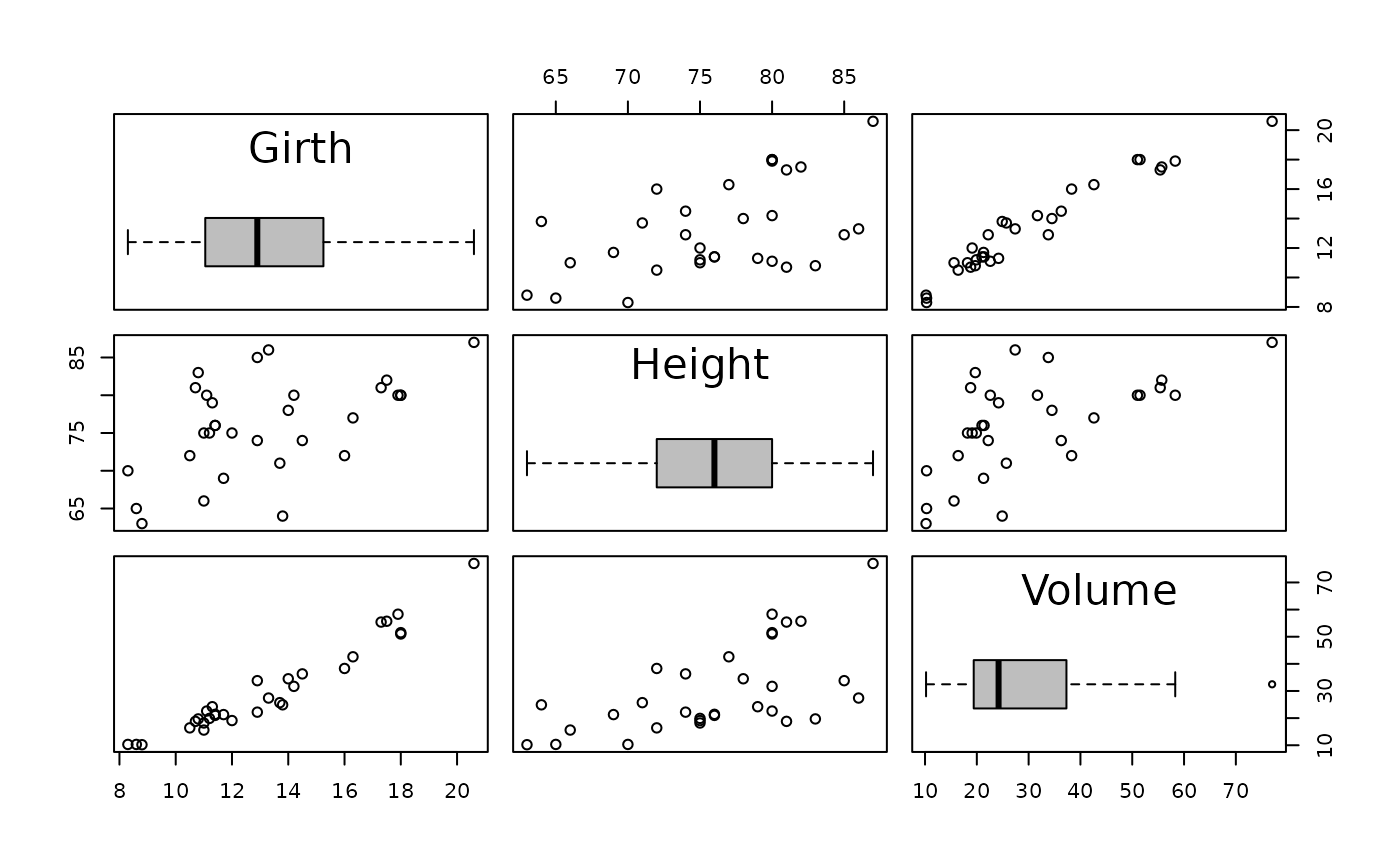

pairs(trees, diag.panel = panel_boxplot, box.col = "gray")
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
#> Warning: "box.col" is not a graphical parameter
# Densities
pairs(trees, panel = panel_smooth, diag.panel = panel_density)
pairs(trees, diag.panel = panel_density, line.col = "red", adjust = 0.5)
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
#> Warning: "line.col" is not a graphical parameter
#> Warning: "adjust" is not a graphical parameter
# Histograms
pairs(trees, panel = panel_smooth, diag.panel = panel_hist)
pairs(trees, diag.panel = panel_hist, hist.col = "gray", breaks = "Scott")
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
#> Warning: "hist.col" is not a graphical parameter
#> Warning: "breaks" is not a graphical parameter
# QQ-plots against Normal theoretical distribution
pairs(trees, panel = panel_smooth, diag.panel = panel_qqnorm)
pairs(trees, diag.panel = panel_qqnorm, qqline.col = 2, qq.cex = .5, qq.pch = 3)
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
#> Warning: "qqline.col" is not a graphical parameter
#> Warning: "qq.cex" is not a graphical parameter
#> Warning: "qq.pch" is not a graphical parameter
